Astra J Opel Insignia Key Programmer

Buy Astra J Opel Insignia Key Programmer

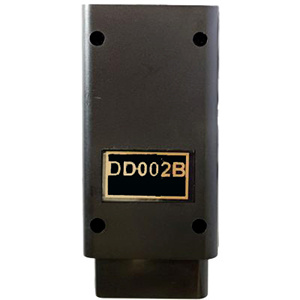

Astra J | Opel Insignia Key Programmer – Reliable OBD2 Key Programming Solution for Opel & Chevrolet Models

Unlock the power of professional key programming with the Astra J | Opel Insignia Key Programmer, a versatile tool designed to program transponder keys for a wide range of Opel and Chevrolet vehicles up to 2014. This device is specifically engineered for models such as the Opel Insignia, Astra J, and Chevrolet Cruze, offering an easy, fast, and secure way to add or replace keys via the OBD2 port—no PC, PIN code, or internet connection required.

Perfect for automotive locksmiths, garages, and technicians, this programmer ensures reliable performance and automatic operation in just a few minutes.

🚗 Supported Models

• Opel: Insignia, Astra J

• Chevrolet: Cruze
  (May support other Opel/Chevrolet models up to 2014, though not all have been tested.)

⚙️ How to Use the Astra J | Opel Insignia Key Programmer

The device is designed for simplicity and efficiency, completing the programming process within 10–15 minutes.

Step-by-Step Instructions:

1. Select Number of Keys to Program
   Use the DIP switches to choose how many keys you want to program:

   Number of Keys	Switch 1	Switch 2
   1 Key	OFF	OFF
   2 Keys	ON	OFF
   3 Keys	OFF	ON
   4 Keys	ON	ON

2. Start Programming

   • Turn the ignition ON.

   • Set the desired key count using the switches.

   • Plug the device into the OBD2 connector.

   • The LED will glow green for 6 seconds, then begin blinking red and green.

   • This indicates that the key learning mode is initializing (takes about 10–12 minutes).

3. Activate Key Learning Mode
   When the LED turns OFF and the buzzer beeps, the system is ready for key learning.

4. Prepare the Vehicle

   • Turn the ignition OFF and remove the key.

   • Open and close the driver’s door within 15 seconds.

   • Avoid turning on electrical accessories (e.g., radio, headlights).

5. Program the New Key(s)

   • When the LED turns green and the buzzer beeps, insert the new transponder key and turn the ignition ON.

   • The LED will blink red and green while the key is being programmed.

   • When programming completes, the LED turns OFF.

   • To program additional keys, repeat from Step 3.

6. Programming Complete
   Once all keys are successfully programmed, the LED will blink green slowly and the buzzer will beep twice—indicating successful completion.

7. Error Indication
   If an error occurs, the buzzer will beep three times and the LED will blink red. Restart the process to ensure proper communication.

💡 Key Benefits

• ✅ Works with Opel Insignia, Astra J, and Chevrolet Cruze models up to 2014.

• ✅ Fully automatic process – no PIN, internet, or software needed.

• ✅ Compact and durable hardware – ideal for workshop or mobile use.

• ✅ LED + Buzzer feedback for clear, step-by-step status updates.

• ✅ Supports programming up to 4 keys in one session.

• ✅ Designed for OBD2 port access, ensuring a simple plug-and-play operation.
