Audi BCM 2 | 2007–2013 Key Programmer

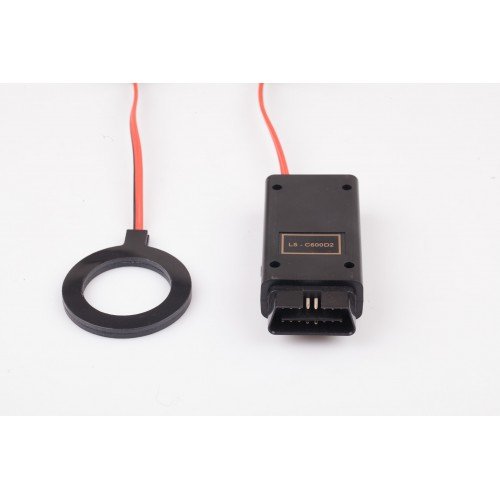

The Audi BCM 2 Key Programmer is a professional key-learning and programming device designed for vehicles equipped with the BCM2 module. It provides advanced functionality for key programming, blank key detection, and alarm system management—all through the OBDII interface.
Supported Audi & VW Models
Compatible with vehicles equipped with BCM2 modules (xx0907064xx, 8K0907289C):
-
Audi A4 (B8) Typ 8K 2008+
-
Audi A5 2007+
-
Audi S5 (B8) 2009+
-
Audi RS5 2010+
-
Audi RS4 2010–2012
-
Audi RS6
-
Audi Q5 2007+
-
Audi A6 (C7) Typ 4K 2010+
-
Audi A7 Sportback 2010+
-
Audi A8 (D4) Typ 4H 2010+
-
Audi R8 up to 2011
-
VW Touareg Typ 7P5 2010+
Main Features
✅ Program 1 to 8 keys per vehicle
✅ Pre-code blank keys directly through the device
✅ Check if a key is blank or used
✅ Turn vehicle alarm ON/OFF when all keys are lost
✅ Fast key-learning process—only 25 seconds per key
✅ Fully plug-and-play via OBDII port
How to Use – Key Learning Procedure
Switch Configuration (Key Quantity Selection)
| Keys | SW1 | SW2 | SW3 |
|---|---|---|---|
| 1 | OFF | OFF | OFF |
| 2 | OFF | OFF | ON |
| 3 | OFF | ON | OFF |
| 4 | OFF | ON | ON |
| 5 | ON | OFF | OFF |
| 6 | ON | OFF | ON |
| 7 | ON | ON | OFF |
| 8 | ON | ON | ON |
Step-by-Step Procedure
-
Set switch positions to match the number of keys you wish to program.
-
Turn ignition ON using a working key (or switch on radio & lights if no key).
-
Connect the device to the OBDII port – LED begins blinking (communication active).
-
If all keys are lost, wait for LED to turn RED, then disconnect & reconnect both 17-PIN BCM connectors.
-
Wait for LED to turn GREEN – dashboard shows key-learning screen (“0/x”).
-
Insert each key in sequence to be learned.
-
For keyless-go vehicles, place the key near the coil.
-
Dashboard updates (e.g. “1/3”, “2/3” …).
-
-
When final key is programmed, the LED flashes GREEN—procedure complete.
Pre-Coding Blank Keys
-
Insert blank key into the device coil before ignition.
-
LED blinks GREEN (pre-coding in progress).
-
When LED turns solid GREEN, the key is ready to program.
-
If LED turns RED, the key is not blank or removed too early.
Check Whether a Key is Blank
-
Set SW6 = ON (others OFF).
-
Connect device to OBDII socket.
-
Insert key:
-
Slow GREEN blink → Key is blank.
-
Fast RED blink → Key is already coded.
-
Alarm Control Functions
Turn Alarm OFF (All keys lost)
-
Set SW8 = ON (others OFF).
-
Switch on radio and lights.
-
Insert device into OBDII.
-
Wait 4–5 seconds for slow GREEN blink (alarm disabled).
-
Unlock all doors and access the trunk to reach the BCM2 module.
Turn Alarm ON (After programming)
-
Set SW7 = ON (others OFF).
-
Turn on radio and lights.
-
Connect to OBDII – slow GREEN blink confirms alarm is reactivated.
LED Indications
-
Slow GREEN Blink → Procedure successful
-
Fast RED Blink → Error or invalid key
-
Solid GREEN → Device ready or procedure complete
-
Solid RED → Reading/writing in progress
Example Scenarios
All Keys Lost (Program 1 New Key)
-
Turn alarm OFF (SW8 ON).
-
Unlock door, insert device into OBDII, wait for success indication.
-
Set switches OFF for 1 key, turn on radio/lights, and reconnect device.
-
Reconnect BCM2 connectors when LED turns RED.
-
Wait for GREEN LED, then follow the dashboard prompts to program the new key.
-
Turn alarm ON (SW7 ON) to finalize.
Add New Key (You Have 1 Working Key)
-
Set SW3 = ON (others OFF).
-
Ignition ON with the working key.
-
Connect device to OBDII – dashboard shows “0/2”.
-
Insert blank key into coil, wait until solid GREEN, then give ignition ON.
-
Dashboard confirms “2/2” – both keys now active.
Why Choose the Audi BCM 2 Key Programmer
-
Professional-grade key-learning tool
-
Supports BCM2 modules 8K0907064xx / 8K0907289C
-
Fast and reliable—no online connection required
-
Perfect for locksmiths, garages, and car workshops
Compatible Modules: xx0907064xx, 8K0907289C
Programming Time: ~25 seconds per key
Connection Type: OBDII
Vehicle Support: Audi A4, A5, S5, RS5, Q5, A6, A7, A8, R8, VW Touareg
