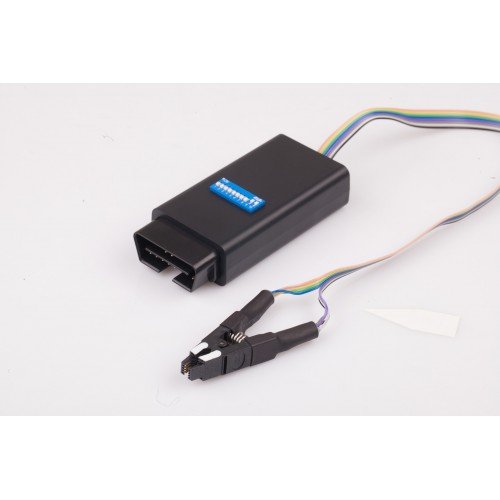

Buy VAG CLIP UDS Key Programmer V2
🔧 VAG CLIP UDS Key Programmer V2 device—Professional Immo IV Key Learning Tool at Auto Turbo Decoder
Upgrade your automotive key programming capabilities with the VAG CLIP UDS Key Programmer V2, the latest professional-grade solution from Auto Turbo Decoder.
Designed specifically for Volkswagen, SEAT, and Škoda vehicles equipped with VDO UDS dashboards (2008–2012) and Immo IV (non-MQB) immobilizer systems, this tool delivers fast, secure, and error-free key learning via OBDII connection.
Perfect for professional locksmiths, auto engineers, and advanced workshops, the VAG CLIP UDS V2 makes key programming a smooth, fully automatic process without the need for complex software or PIN codes.
⚙️ Supported Systems & Compatibility
-
Works with Immo IV (non-MQB) systems.
-
Compatible with VW, SEAT, and Škoda vehicles using UDS dashboards (VDO 24C32 / 24C64 EEPROM).
-
Ideal for 2008–2012 models equipped with CAN-based UDS systems.
🧠 How It Works—Simple Key Learning Procedure
-
Turn ignition ON using a new transponder or key.
-
Connect the VAG CLIP UDS V2 to the OBDII port.
-
When the green LED flashes, connect the clip to the 24C32 or 24C64 EEPROM on the dashboard.
-
During the read/write process, the LED turns red (≈1 second for 24C32 or ≈4 seconds for 24C64).
⚠️ Do not disconnect the clip while LED is red – doing so may damage the EEPROM. -
Once complete, the LED will turn green, prompting you to reconnect the dashboard to the vehicle.
-
The LED will blink rapidly during key programming, then slowly flash green when the process is complete.
🔄 Device Reset & Safety Tips
-
Do not remove the device from the OBDII port during EEPROM operations.
-
Always backup EEPROM data with an external programmer before starting.
-
If the procedure does not complete, reset by switching SW1, SW3, SW5, and SW7 to ON, and SW2, SW4, SW6, and SW8 to OFF, then restart the process.
-
Switches SW1–SW8 are only used for testing. During normal operation, they remain OFF, while SW9 and SW10 stay ON.
🚀 Why Choose Auto Turbo Decoder’s VAG CLIP UDS Key Programmer V2
-
Plug-and-play key learning through OBDII—no external software required.
-
Safe EEPROM communication for both 24C32 and 24C64 dashboards.
-
Automatic key recognition and programming within seconds.
-
Compatible with major VW Group brands—Volkswagen, SEAT, and Škoda.
-
Professional-grade reliability trusted by locksmiths and auto technicians worldwide.
📦 Package Includes
-
VAG CLIP UDS Key Programmer V2
-
EEPROM Clip (for 24C32 / 24C64)
-
User Manual
-
Secure Protective Case
-
Free DHL Express Shipping
🏁 Professional Key Programming, Simplified
The UDS Key Programmer V2 from Auto Turbo Decoder combines precision engineering with effortless usability. Whether you’re adding new keys, restoring lost transponders, or repairing immobilizer systems, this device gives you factory-level access and control in minutes.
Built for speed, safety, and reliability, the VAG CLIP UDS V2 is an essential tool for every professional auto locksmith or diagnostic specialist working with VAG UDS systems.
